Description

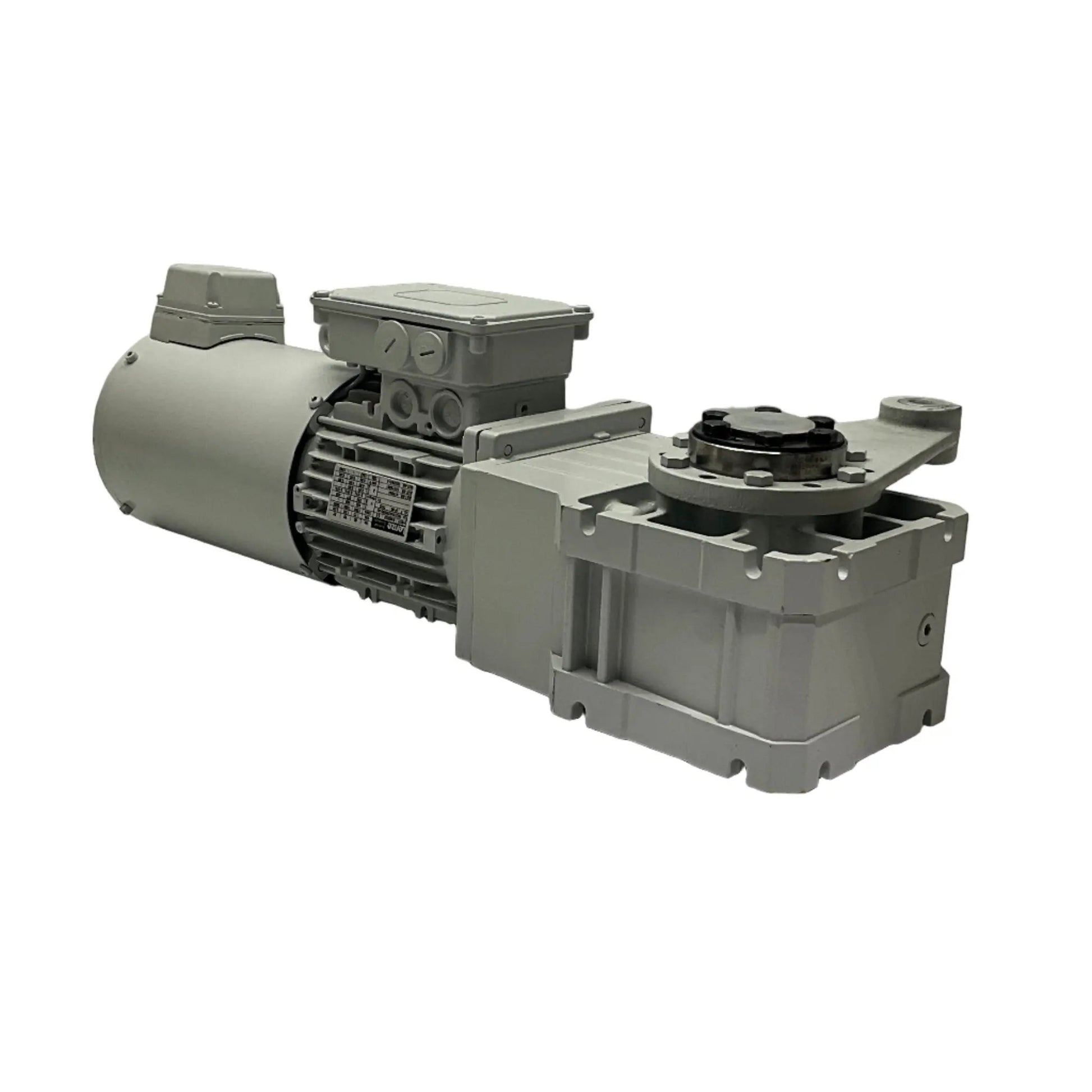

lenze gear motor Lenze MDXMA2M080-42 GearmotorBrand: Lenze Model: MDXMA2M080 42 Type: Gearmotor Technical Specifications: Rated Power: 1. 10 kW @ 50 Hz Rated Torque: 7. 6 Nm Rated Speed: 1390 rpm Voltage: 3 400 V AC (50 60 Hz) Gearbox: GKR05 2M Ratio i = 6. 257 Output Torque: 45 Nm Output Speed: ~222 rpm Hollow shaft with shrink disc Mounting: Foot + flange Fan: Fremlufter A2S130 (forced cooling fan) Voltage: 220 240 V AC single phase Power: 0,046 kW Purpose: Enables 100 % torque at standstill
- Brand: Lenze
- Model: MDXMA2M080-42
- Type: Gearmotor
- Technical Specifications:
- Rated Power: 1.10 kW @ 50 Hz
- Rated Torque: 7.6 Nm
- Rated Speed: 1390 rpm
- Voltage: 3 × 400 V AC (50/60 Hz)
- Gearbox: GKR05-2M
- Ratio i = 6.257
- Output Torque: 45 Nm
- Output Speed: ~222 rpm
- Hollow shaft with shrink disc
- Mounting: Foot + flange
- Fan: Fremlufter A2S130 (forced cooling fan)
- Voltage: 220 - 240 V AC single-phase
- Power: 0,046 kW
- Purpose: Enables 100 % torque at standstill and low-speed operation without derating
- Protection Rating: IP55 (motor + gearbox), IP54 (fan)
- Thermal Class: 155 (F)
- Dimensions: 640 x 280 x 220 mm
- Weight: 26 kg
- Country of Origin: Germany
- HS Code: 850152
